Lead Time: This product will begin to ship from the manufacturer around Oct 1st, 2024.
This Terminated Gen3 Drive-By-Cable LSX Harness is for use with Core ECU by HP Tuners.
ENGINE HARNESS CONNECTIONS
The following connections are included with this engine harness assembly...
SUPPORTED ECU: CORE ECU BY HP TUNERS
 |
This engine harness is for use with the CORE ECU by HP Tuners. The four AMP Super Seal 1.0 style connectors are used to make a connection to the CORE ECU. |
CRANK/CAM SIGNAL TYPE: 58X/4X
 |
The Crankshaft Position (CKP) Sensor connector on this harness is for use with all Gen IV 58x LS CKP sensors. |
 |
The Camshaft Position (CMP) Sensor connector on this harness is for use with all Gen IV 4x LS CMP sensors. This sensor is located within the front engine timing cover. |
THROTTLE SYSTEM: DRIVE-BY-WIRE (DBW)
 |
The throttle body connector on this harness is for use with 6-wire Gen IV LS-Series throttle bodies only. This is the most common throttle body used with Gen IV LS-Series engines. |
 |
For engines using a different Drive-by-Wire throttle body, see our DBW Throttle Body Adapters for CORE from our Adapter Harnesses for CORE. |
ACCELERATOR PEDAL POSITION (APP) SENSOR: 2004-2015 CADILLAC CTS
 |
The Accelerator Pedal Position (APP) Sensor connector on this harness is for use with the popular 2004-2015 Cadillac CTS pedal assembly. |
 |
For engines using a different APP, see our Accelerator Pedal Position (APP) Sensor Adapters for CORE from our Adapter Harnesses for CORE. |
FUEL INJECTOR TYPE: EV6
 |
The fuel injector connectors on this harness are for use with EV6 style fuel injectors. GM used the EV6 injectors on most Gen IV LS-Series engines. |
 |
For engines using EV1 style fuel injectors, purchase our plug and play EV6 Harness to EV1 Injector Adapter Set of 8 from our Adapter Harnesses for CORE. |
MAP SENSOR TYPE: BOSCH (LATE LS ENGINES)
 |
The Manifold Absolute Pressure (MAP) sensor connector on this harness is for use with the late LS style Bosch MAP sensor. This sensor is commonly used with Gen IV LS-Series engines. |
MAF SENSOR TYPE: LS3/LS7 SLOT/CARD
 |
The Mass Air Flow (MAF) sensor connector on this harness is for use with LS3/LS7 style MAF sensor. See our MAF Adapter Harnesses for CORE if you are using a different MAF sensor. MAF is not required, but an IAT breakout harness will be required for speed density operation. |
LAMBDA SENSOR TYPE: BOSCH LSU 4.9
 |
CORE ECU requires two Bosch LSU 4.9 wideband O2 (lambda) sensors. This harness provides a connection for bank 1 and bank 2 lambda sensors. |
EOP SENSOR TYPE: LATE LS-SERIES
 |
The 3-wire Engine Oil Pressure (EOP) Sensor connector on this harness is for use with late EOP sensors. NOTICE! Single wire oil pressure sending units on certain LS engines are vehicle gauge cluster specific and not compatible with the GM PCM or CORE ECU. EOP is not required. |
KNOCK SENSOR TYPE: 2-WIRE FLAT RESPONSE (TWO SENSORS)
 |
The Knock Sensor (KS) connectors on this harness are for use with Gen IV LS flat response knock sensors commonly located on the sides of the engine above the oil pan. |
ALTERNATOR TYPE: 4-CAVITY LS-SERIES
 |
The alternator connector on this harness is for use with all 4-cavity LS alternators. Notice the single red wire is all that is needed to turn on the alternator. |
 |
For 2 pin LS alternators, purchase our order-to-length adapter harness AWP-6042. from our Adapter Harnesses for CORE. |
ECT SENSOR TYPE: 2-WIRE LS-SERIES
 |
The Engine Coolant Temperature (ECT) sensor connector on this harness is for use all 2-wire ECT sensors. 1998 Camaro/Firebird LS1 engines will require the removal of the 3-wire ECT and replace with a 2-wire ECT sensor. |
TRANSMISSION TYPE: MANUAL SUPPORTED | 4L60E/4L80E SUPPORT AVAILABLE
 |
This harness provides a 20 pin I/O connector that mates with HP Tuners transmission harness p/n COR-HAR-004 for 4L60E and 4L80E transmission support. HP Tuners CORE 4L60E/4L80E harness sold separately. |
VSS TYPE: LATE GM | ALL PRODUCTION LS
 |
The Vehicle Speed Sensor (VSS) connector on this harness is compatible with all factory GM LS style speed sensors. Conversions using an 80s or early 90s VSS will require an adapter harness sold separately. |

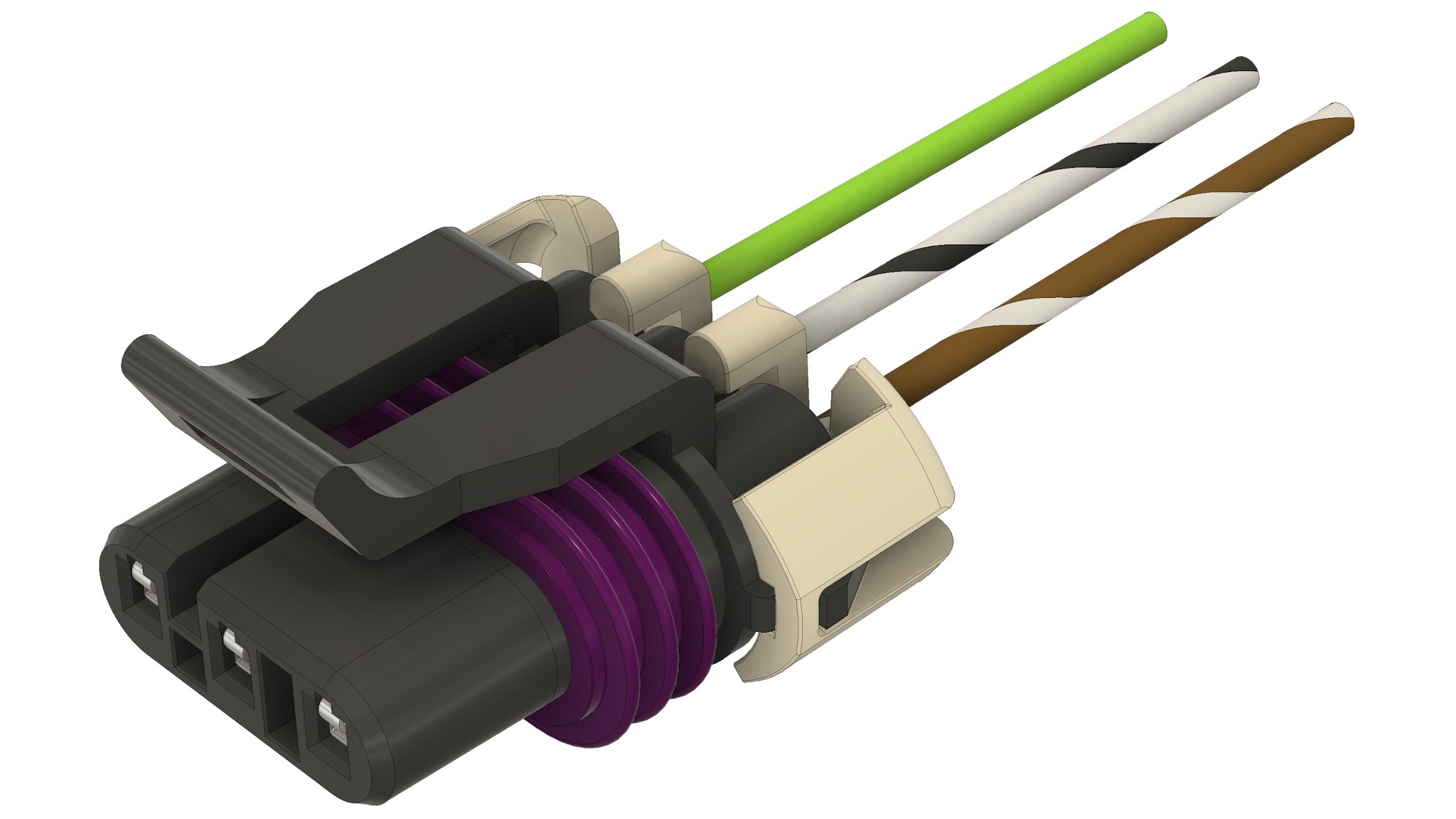

BARO TYPE: 1-BAR PACKARD/DELPHI STYLE
 |
CORE ECU supports the use of a Barometric Pressure (BARO) Sensor. We suggest the use of a RIFE 1-BAR BARO Sensor. BARO is not required. |
COMMUNICATION/DIAGNOSTIC LINK: RJ45 ETHERNET
 |
CORE ECU communicates with your Windows-based PC via an ethernet RJ45 connection cable. A tethered sealed dust cap is included. |
HPT NET SUPPORT: M8 CIRCULAR
 |
HPT Net support is included through the 22 AWG M8 cable assembly. |
CAN BUS SUPPORT: DEUTSCH/AMPHENOL DT SERIES CONNECTIONS
 |
CORE ECU has two CAN bus networks (in addition to HPT Net). Two 4-pin Deutsch/Amphenol style connectors are included for CAN bus expansion. A sealed cap is included for each CAN bus connector. |
ELECTRICAL CENTER: GM STYLE FUSE BLOCK ASSEMBLY
 |
The included electrical center is an OE style Aptiv bussed fuse block assembly containing ignition relay, fuel pump relay, fuses, and alternator 500 ohm resistor. Electrical center legend is laser engraved into the bottom of the included dust cap. |
ENGINE HARNESSES FOR CORE ECU
[CLICK HERE] for a complete list of LS-series engine wire harnesses for CORE ECU by engine configuration and transmission type. Choose from genuine HP Tuners and EFI Connection brand wire harnesses.
